Product Management

1. Description​

Product Management mainly solves data preparation for mass production and device pre-registration. Functions include:

  • Create Product: Select device plugin, bind protocol, select authentication method, providing basic config for device pre-registration.
  • Batch Management: Create device batches, export data, import data. Supports One-Unique-Secret per device.
  • QR Code Data: Export QR code data for production and user App scanning.
  • Manual Activation: Manually activate devices.
  • Pre-registration Management: Check device activation status.

2. Steps​

  1. Create Product
  2. Create Batch
  3. Generate Batch
  4. Add Device in Pre-registration List
  5. Add Firmware to Product
  6. Online device before creating task, subscribe to ota/device/infrom/AccessToken
  7. Add Upgrade Task, select devices
  8. Check Task List after receiving upgrade info
  9. Simulate upgrade progress reporting to ota/device/progress. Example: {"step":"2","desc":"Progress 2%","module":"default"}
  10. Check progress in Task List
  11. Push 100% progress to complete

3. Operations​

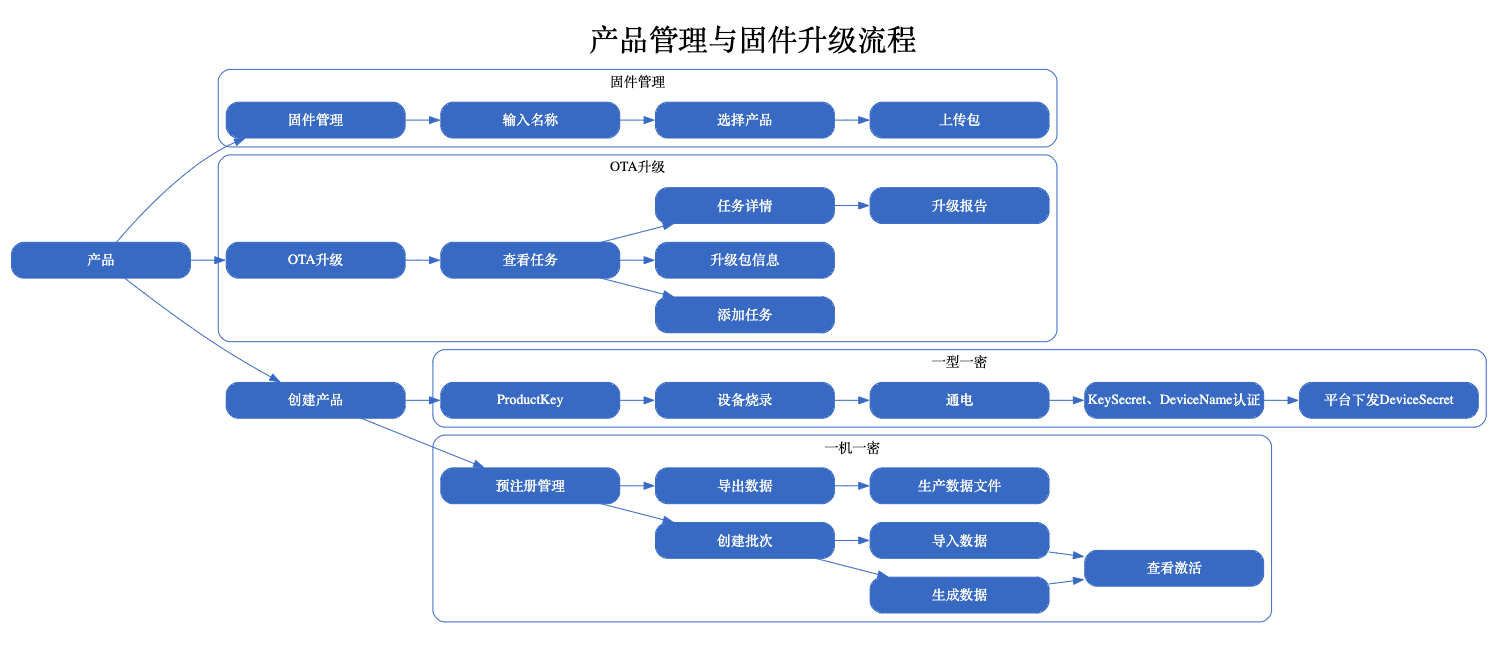

3.1 Product Management & OTA Flow​

Flow

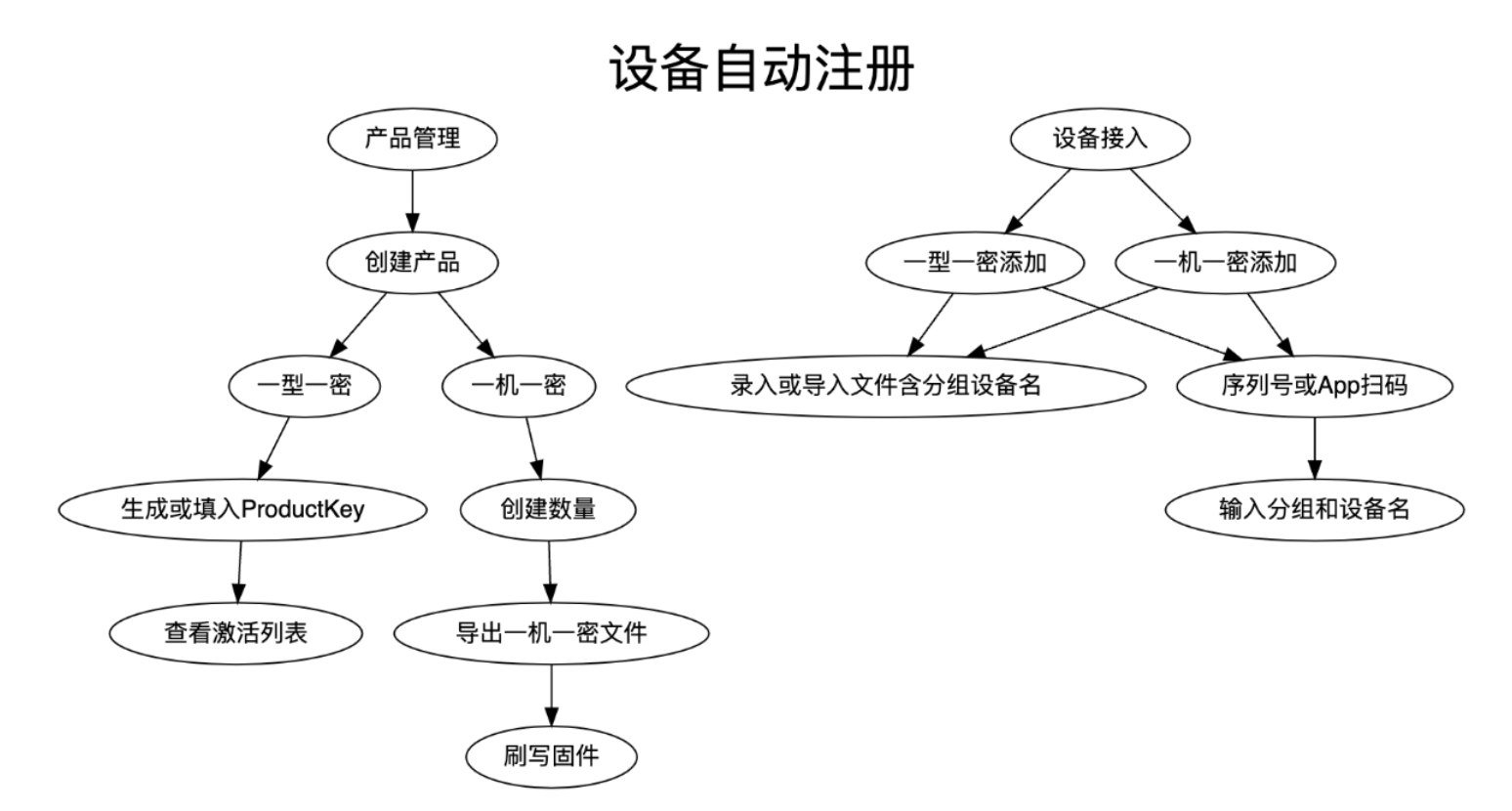

3.2 Device Auto Registration​

Auto Registration

3.3 Product List​

Product List

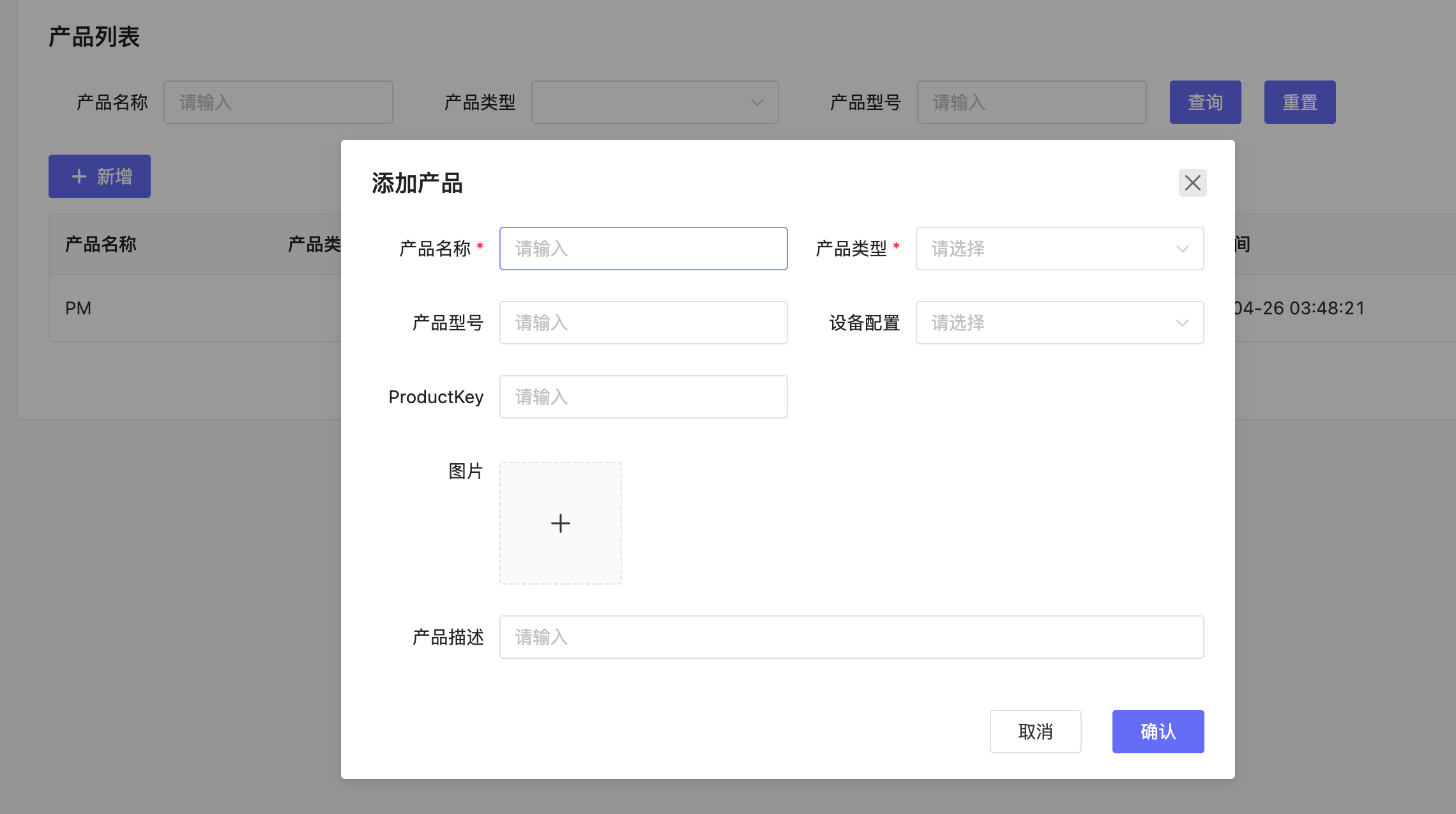

3.4 New Product​

  • Bind Device Config when creating product. New Product

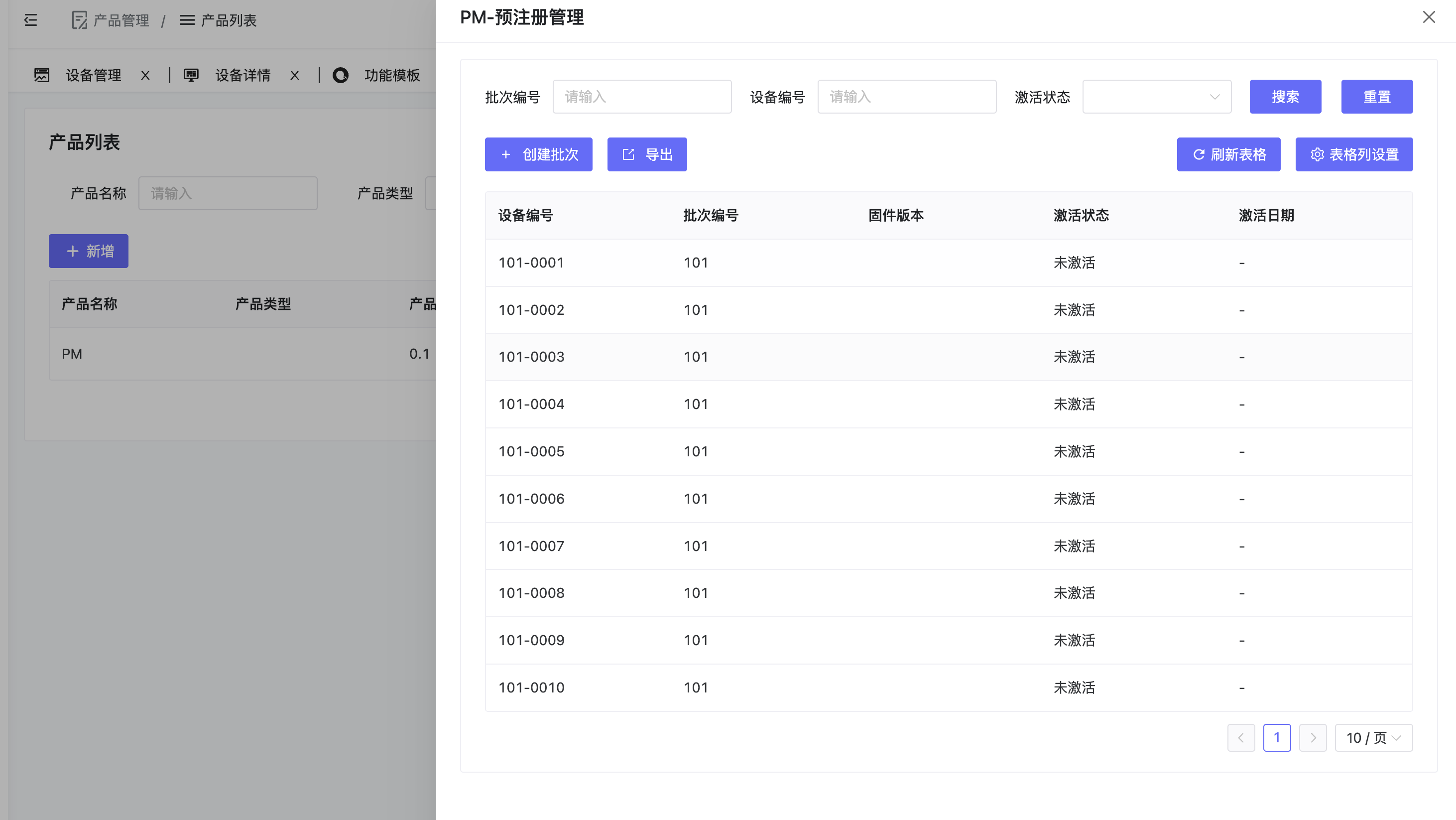

3.5 Pre-registration Management​

Pre-registration

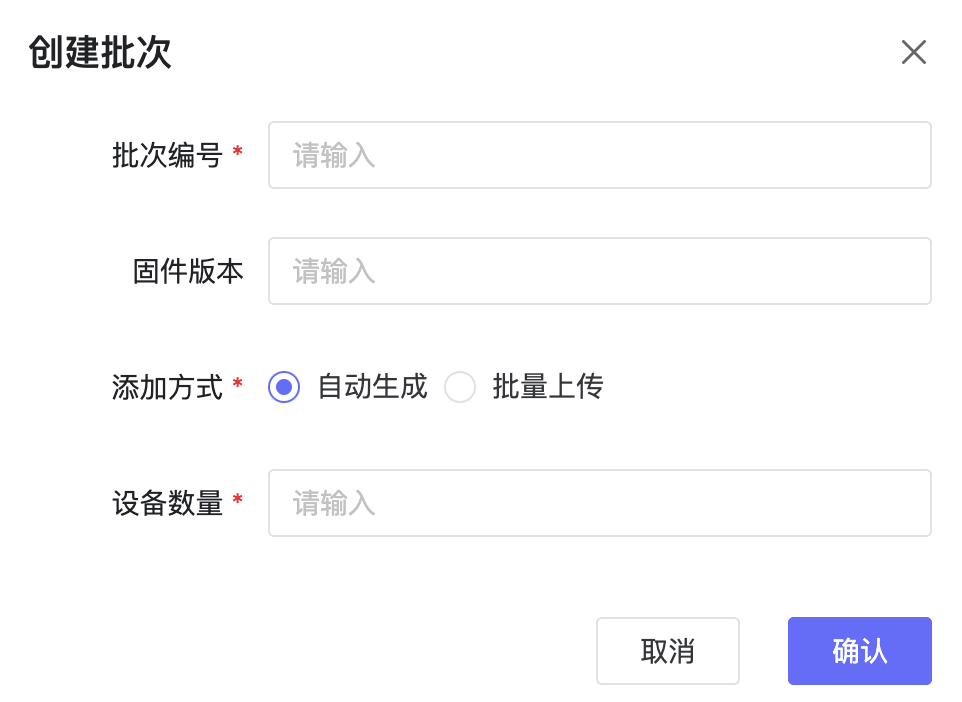

3.6 Create Batch​

Create Batch
