Overview​

Background & Issues​

In the IoT field, communication protocols are extremely diverse and complex. Common protocols include MQTT, TCP, HTTP, SOAP, Modbus, OPC-UA, Bacnet, KNX, LwM2M, SNMP, etc., along with countless other protocols and various gateway or third-party services.

Status Quo & Challenges
  • Complexity: These protocols and services differ in communication patterns and message specifications, leading to huge complexity in system integration.
  • Consequences: This complexity makes the system bloated and inefficient, and also difficult to extend and maintain, resulting in high maintenance costs.

Service Definition​

The Device Connectivity Service is a multifunctional middleware component that acts as a bridge between devices and the system, connecting devices to the ThingsPanel platform and enabling interaction between devices and the platform.

Service Categories​

Two Core Categories
  1. Device Connectivity Service: Supports various IoT protocols (e.g., MODBUS, MQTT), enabling ThingsPanel to communicate directly with devices using these protocols.
  2. Third-party Connectivity Service: Connects ThingsPanel with various third-party IoT platforms, communicating with devices indirectly to achieve data interoperability and device management.

Key Features​

  • 🔗 Provides unified interface specifications, simplifying access for devices and third-party platforms.
  • 🌐 Supports multiple protocols and services, enhancing ThingsPanel's compatibility and extensibility.
  • ⚙️ Enables flexible configuration and credential management, facilitating quick access to different protocols and third-party platforms.
  • 📊 Real-time data synchronization and device status monitoring.
  • 🔧 Modular design, easy to extend to support new protocols and third-party platforms.

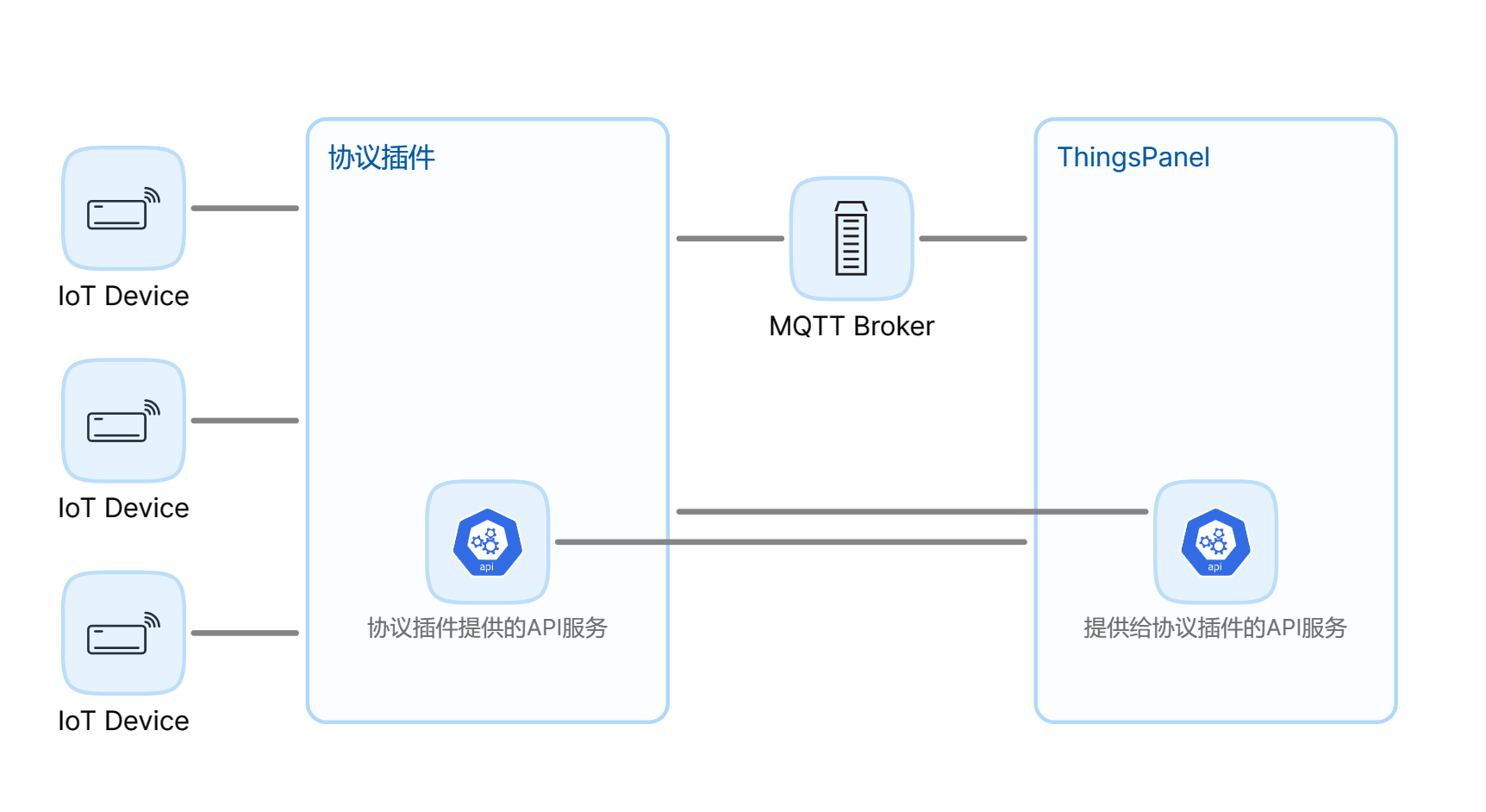

Interaction Structure Diagram​

Architecture Diagram​

Device Connectivity Service Interaction Flow​

Development Guide​

Preparation​

Development Steps​

1. Download Service Template​

git clone https://gitee.com/ThingsPanel/protocol-plugin-template.git

2. Understand Core Concepts​

Four Core Data Types

Understanding ThingsPanel's four data models is crucial for plugin development:

  • 🔄 Telemetry - Real-time data reported by devices, usually measurements changing over time.
  • 📋 Attributes - Static or less frequently changing characteristics of devices.
  • 🎯 Events - Specific events or state changes occurring in devices.
  • ⚡ Commands - Control instructions sent from the platform to devices.

3. Modify Template Code​

  • Read README-DEV.md in the template source.
  • Update SDK to latest version:
    go get -u github.com/ThingsPanel/tp-protocol-sdk-go@latest
  • Modify credential form from_voucher.json based on protocol docs.
  • Determine if configuration form is needed.
  • Modify interface implementation in http_service/service.go.

4. Register Device Connectivity Service​

Register the service on the platform using a Super Admin account:

  • App Management → Connectivity Service Management → Add New Service

5. Write Core Logic​

  • Handle upstream/downstream device messages.
  • Use AI tools to assist in generating protocol parsing code.
  • Interact with the platform via MQTT client.

6. Integration Testing​

  • Create device template and select protocol.
  • Create device and bind template.
  • Fill in device credential info.
  • Connect device to the service and test.

Technical Specifications​

Reference API Docs: ThingsPanel API Docs

Table of Contents:

  • ✨ Device Connectivity Service - Platform Provided
  • ✨ Device Connectivity Service - Service Provided

Data Interaction Specifications​

Service Pushes Data to Platform​

Direct Device / Sub-device / Gateway Device Messages​

  • MQTT User: plugin
  • Publish Topic: device/telemetry
  • MESSAGE Format:
    {"device_id":"device_id","values":{"key":"value"}}

Online/Offline Notification​

  • Publish Topic: devices/status/{device_id}
  • Payload: 0 - Device Offline 1 - Device Online

Platform Pushes Data to Service​

Subscribe Topic Spec​

The service needs to subscribe to topics with a prefix:

  • Subscribe Topic: plugin/{service_identifier}/#
  • Explanation: plugin/{service_identifier}/ is the prefix filled in during registration. The # part follows the MQTT Device Onboarding Rules.
Topic Mapping

The service's subscription topic adds a prefix compared to the platform downstream spec. Also device_number should be changed to device_id.

Service Registration​

Registration Parameters​

ParameterDescription
Service NameDisplayed in protocol dropdown when creating device template
Service IdentifierUnique ID in the system, alphanumeric
CategorySelect access protocol
HTTP Service AddressAddress for platform backend to access service API, e.g., 127.0.0.1:8151
Service Sub PrefixFormat like service/{name}/
Device Onboarding AddressDisplayed under device credential management, prompt for user device connection address

Registration Method​

Platform Registration​

  1. Login as Super Admin.
  2. Go to Integration Management → Connectivity Service Management.
  3. Click Add New Service.
  4. Fill in configuration info.

Resources​

Dev Resources

Best Practices​

Dev Notes
  1. Message ID Management: Recommend using last 7 digits of timestamp to ensure uniqueness in short term.
  2. Device Uniqueness: Ensure device ID is globally unique in the system.
  3. Error Handling: Implement complete error response mechanism for diagnosis.
  4. Performance: Recommend parsing data within the service to avoid script conversion.
  5. Form Validation: Validate JSON format before reporting.
  6. Device State Management: Implement state management including online/offline.
